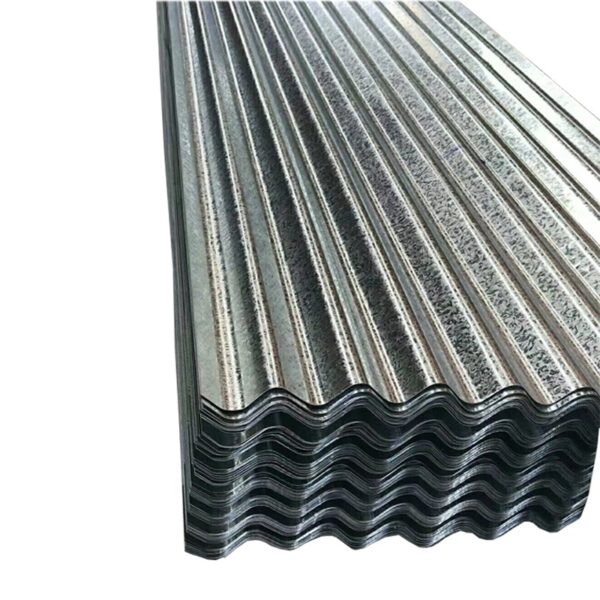

Corrugated Steel Sheets
Corrugated Steel Sheet
Thickness: 0.12mm-0.8mm |Width : 665mm-1000mm| Length：1000mm-5900mm
The best solution for industrial, commercial, and residential projects that need reliable sheet metal. Custom thickness options are available upon request.
| Product Name | Corrugated Steel Sheet / Steel roofing tile | |
| Grade | GI: JIS 3302-SGCC, SGCH(full hard) | GL: JIS 3302-SGLC, SGLCH(full hard) |
| Thickness | 0.12mm-0.8mm | |
| Width | 665mm-1000mm | |
| Length | 1000mm-5900mm | |
| Wave Height | Depend on the model of the sheet | |
| Wave Length | Depend on the model of the sheet | |
| Raw Material | GI(Galvanized steel sheet) | GL(Galvalume steel sheet) |
| Surface Treatment | GI:Chromed(Cr 3+, 6+,0+) | GL: Anti-Finger Print / Non Anti-Finger Print |
| Zinc Coating | GI: Z40gr/㎡-Z275gr/㎡ | GL:AZ40 g/㎡ – AZ220 g/㎡ |
| Spangle | GI: Regular/Zero/Big/Minimized | GL:Regular |
| Yield Strength | ≥300MPa | |
| Bundle Weight | 2MT – 5MT | |
| Lifespan | 10-15 years, anti-corrosion | |
| Packing | Standard export package, by steel pallet. Or according to customer’s requirements | |
| Application | Building material: roof, wall of industrial workshop, warehouse, moving house, container, etc | |
| Loading Port | Tianjin Port / Qingdao port, China | |
| Remarks | Insurance is all risks | |
| We accept the third party certificatation test | ||
